Linzhou Public Service Railway Equipment Manfacturing Co.,Ltd

Chinese rail tie plate manufacturer

  • Product Item:038
  • Category:Rail Tie Plate
  • Views:956

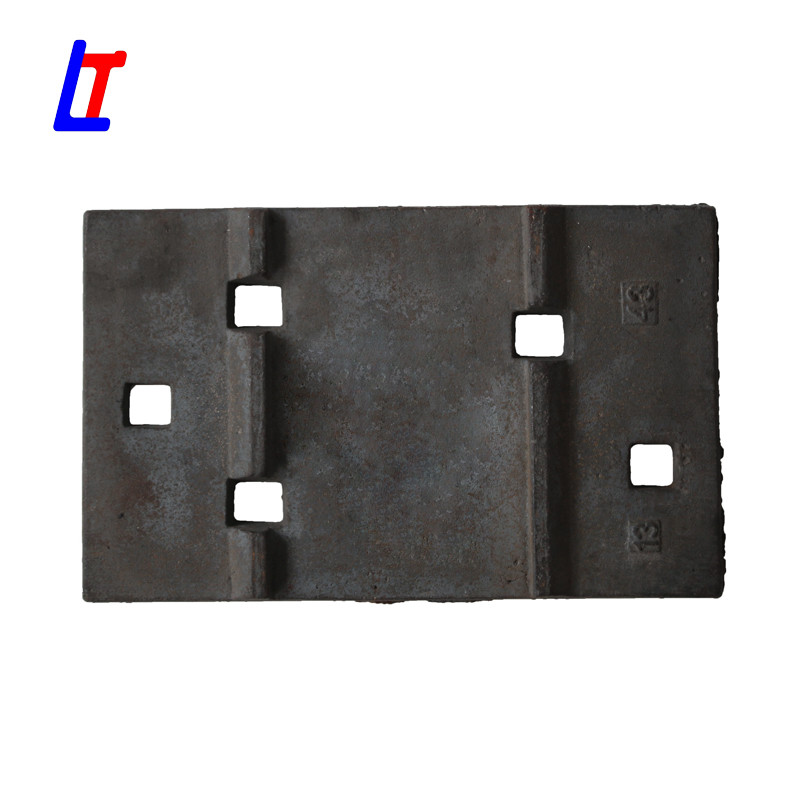

  • casting tie plate
  • rail tie plate manufacturer
  • Chinese rail tie plate manufacturer
  • rail tie plate
  • Product Manual: We have widely ranges of production for rail tie plates, and so far more than 500 moulds for tie plate we have.and our darily production:50Ton/Day
BASIC INFO


Material:QT400-15,QT450-10,QT500-7

Finish:Plain,Black,Zinc,HDG,Dacromet

MOQ:1,000 pieces
Supply Capacity:3,000 Tons per Month
Delivery:25 Days after Order

Technical specification with tie plate as below:

Type Material Technical specifications Surface Treatment Usage
Rail Tie Plate for E-clip QT450-10,QT400-15,QT500-7

1,Hardness:170-240HB;

2,Standard:GB/T6414-1999;UIC-864-1,ABNT NBR-6916,AREMA

3,Tension Strength more than 500 MPa,Yield strength minimum 350 MPa and elongation minimum 7%.

4,The nodularity shall be at least 85%

5,The tie plates have neat finish, with smooth and level and should be free of breaks in continuity, repairs, cracks, deep cracks and other damage. The holes should be free of burrs.

Black paint or static coating,Galvanized coating or as client's required With E-clip on the tie plate,For BS RAIL and other rails
50S1 tie plate QT450-10,QT400-15,QT500-7

1,Hardness:170-240HB;

2,Standard:GB/T6414-1999;UIC-864-1,ABNT NBR-6916,AREMA

3,Tension Strength more than 500 MPa,Yield strength minimum 350 MPa and elongation minimum 7%.

4,The nodularity shall be at least 85%

5,The tie plates have neat finish, with smooth and level and should be free of breaks in continuity, repairs, cracks, deep cracks and other damage. The holes should be free of burrs.


Black paint or static coating,Galvanized coating or as client's required
For Itay Mkt
Wooden sleeper tie plate QT450-10,QT400-15,QT500-7

1,Hardness:170-240HB;

2,Standard:GB/T6414-1999;UIC-864-1,ABNT NBR-6916,AREMA

3,Tension Strength more than 500 MPa,Yield strength minimum 350 MPa and elongation minimum 7%.

4,The nodularity shall be at least 85%

5,The tie plates have neat finish, with smooth and level and should be free of breaks in continuity, repairs, cracks, deep cracks and other damage. The holes should be free of burrs.


Black paint or static coating,Galvanized coating or as client's required
For wooden sleeper use
Double tie plate QT450-10,QT400-15,QT500-7

1,Hardness:170-240HB;

2,Standard:GB/T6414-1999;UIC-864-1,ABNT NBR-6916,AREMA

3,Tension Strength more than 500 MPa,Yield strength minimum 350 MPa and elongation minimum 7%.

4,The nodularity shall be at least 85%

5,The tie plates have neat finish, with smooth and level and should be free of breaks in continuity, repairs, cracks, deep cracks and other damage. The holes should be free of burrs.


Black paint or static coating,Galvanized coating or as client's required
AREMA
Sigle tie plate QT450-10,QT400-15,QT500-7

1,Hardness:170-240HB;

2,Standard:GB/T6414-1999;UIC-864-1,ABNT NBR-6916,AREMA

3,Tension Strength more than 500 MPa,Yield strength minimum 350 MPa and elongation minimum 7%.

4,The nodularity shall be at least 85%

5,The tie plates have neat finish, with smooth and level and should be free of breaks in continuity, repairs, cracks, deep cracks and other damage. The holes should be free of burrs.


Black paint or static coating,Galvanized coating or as client's required
AREMA
Tie plate for 7/8" Base Rail QT450-10,QT400-15,QT500-7

1,Hardness:170-240HB;

2,Standard:GB/T6414-1999;UIC-864-1,ABNT NBR-6916,AREMA

3,Tension Strength more than 500 MPa,Yield strength minimum 350 MPa and elongation minimum 7%.

4,The nodularity shall be at least 85%

5,The tie plates have neat finish, with smooth and level and should be free of breaks in continuity, repairs, cracks, deep cracks and other damage. The holes should be free of burrs.

Black paint or static coating,Galvanized coating or as client's required
FOR 7/8" Base Rail
TR37 Tie plate
QT450-10,QT400-15,QT500-7

1,Hardness:170-240HB;

2,Standard:GB/T6414-1999;UIC-864-1,ABNT NBR-6916,AREMA

3,Tension Strength more than 500 MPa,Yield strength minimum 350 MPa and elongation minimum 7%.

4,The nodularity shall be at least 85%

5,The tie plates have neat finish, with smooth and level and should be free of breaks in continuity, repairs, cracks, deep cracks and other damage. The holes should be free of burrs.

Black paint or static coating,Galvanized coating or as client's required
In specific for 136 RE,115RE,100RE and 90ARA-A rail to apply in deenic or E-clip fasteners
Tie plate for poland QT450-10,QT400-15,QT500-7

1,Hardness:170-240HB;

2,Standard:GB/T6414-1999;UIC-864-1,ABNT NBR-6916,AREMA

3,Tension Strength more than 500 MPa,Yield strength minimum 350 MPa and elongation minimum 7%.

4,The nodularity shall be at least 85%

5,The tie plates have neat finish, with smooth and level and should be free of breaks in continuity, repairs, cracks, deep cracks and other damage. The holes should be free of burrs.

Black paint or static coating,Galvanized coating or as client's required
For light Rail
other casting tie plate according to client's required QT450-10,QT400-15,QT500-7

1,Hardness:170-240HB;

2,Standard:GB/T6414-1999;UIC-864-1,ABNT NBR-6916,AREMA

3,Tension Strength more than 500 MPa,Yield strength minimum 350 MPa and elongation minimum 7%.

4,The nodularity shall be at least 85%

5,The tie plates have neat finish, with smooth and level and should be free of breaks in continuity, repairs, cracks, deep cracks and other damage. The holes should be free of burrs.

Black paint or static coating,Galvanized coating or as client's required
According to client's required

Base tie plate, also called sole plate or baseplate, is a piece of plate made by steel used between the rails and sleeper ties in order to enlarge the bearing touching area and maintain the rail in right gauge all the time. For wooden ties, a baseplate is always fixed with rail spikes or track bolts in holes on the plate.

At our production base for the tie plates, various types are available following standards of AREMA, UIC, BS and others, with either single shoulder plates or double shoulder plates according to customers’ requirements.

  • Size: 10-15inch long, for rails of 90RA-A, 100RE, 115-119RE, 132-136RE
  • Material: Low carbon steel/high carbon steel, equivalent of customers’ required materials.
  • Standard: AREMA
  • Processing way: casting, forging or rolling
  • Size: for UIC60, UIC54, S48 rails
  • Material: Low carbon steel, high carbon steel, casting iron.
  • Standard: UIC864-6
  • Processing way: casting, forging or rolling
  • Size: for 50kg/30kg/37kg rails
  • Material: QT450-10 or other low carbon steel
  • Standard: GB, JIS E1110
  • Processing way: casting, forging or rolling


Linzhou Public Service Railway Equipment Manufacturing Co.,Ltd Has automatic machinery production casting line, new detection equipment and instruments  as below:

Production Equipment Type Unit QTY Production Capacity Material
Core shooter
Z8612B Set 4 40Ton QT450-10;QT500-7
Automatic shell core machine
Z9508 Set
1 40Ton
QT450-10;QT500-7
Megatron Pressure Implentation molding machine Z145W Set
12 40Ton
QT450-10,QT500-7
Electric stove 1 Ton Set
2 40Ton
QT450-10,QT500-7
Spheroidizing double wire feeder WX-60T Set
2 40Ton
QT450-10,QT500-7
Crawler shot blasting machine 600 Set
2 40Ton
QT450-10,QT500-7
Medium Frequency Melting Equipment For Vein Steel Sheel Yoke 2T Set
4 40Ton
QT450-10,QT500-7
Continus Emission Monitoring System CEMS Set
2 60Ton
QT450-10,QT500-7
Vertical parting box-less injection moulding machine ZZ416BC Set
1 60Ton
QT450-10,QT500-7


Inspect machine

Type

Unit

Qty

Test Content

Usage

Magnetic Particle testing machine

CTW-2000

Set

1

Anti-corrosion parts

all kinds of fasteners

Sulfur dioxide corrosion testing machine

F-S02-250

Set

1

Anti-corrosion parts

all kinds of fasteners

Smoke Corrosion Testing Machine

SK-110C

Set

1

Anti-corrosion parts

all kinds of fasteners

Box Sand Blasting Machine

Set

1

Anti-corrosion parts

all kinds of fasteners

Micro computer controlled electronic universal material testing

WDW-300M

Set

1

Anti-corrosion parts

all kinds of fasteners


Invested 2 billion on this iron casting production line,Strictly in quality.Rail Tie Plate&Base plate,Rail clamp,rail baffle plate,rail shoulder,rail brace we can produce with this machine.If you need,contact us lina@lt-railfastener.com
