Linzhou Public Service Railway Equipment Manfacturing Co.,Ltd

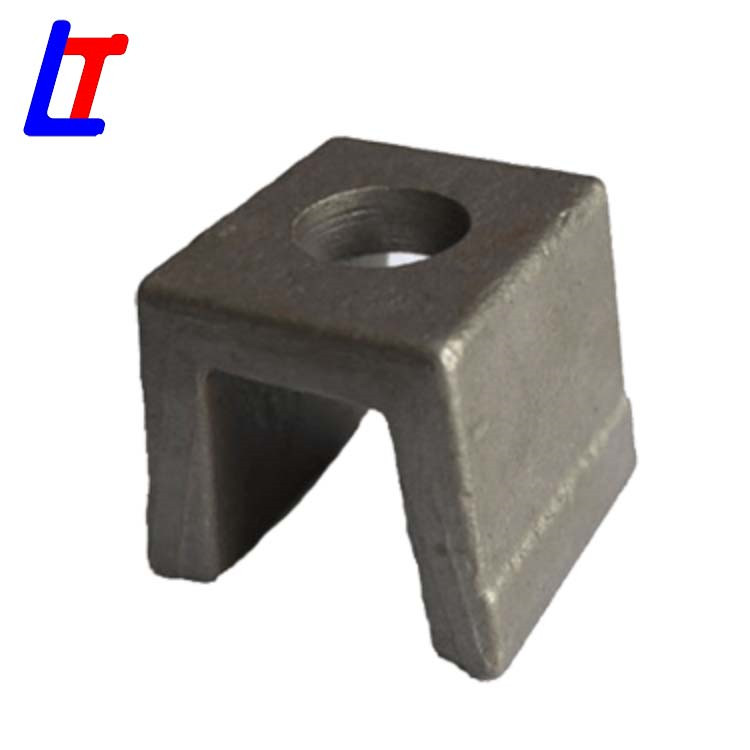

KPO Rail Clamp

  • Product Item:024
  • Category:Rail Clamp
  • Views:1431
  • Material:QT450-10
  • Usage:For rail fastener
  • CRCC Certification
  • ISO9001:2018
  • Product Manual:our factory has own equipment for doing iron products,such as kpo clamp、boltable rail clamps and weldable rail clamps etc
BASIC INFO

Similarly as elastic rail clip or KPO rail clip, a rail clamp sometimes called rail clip or rail fixing clip, is kind of device used to maintain the lateral position of the rail, especially crane rail, but allow necessary longitudinal movement. The rail clamp keeps the rail in position through the mechanical lock and at the same time, accepts the real longitudinal rail movement through the combined vulcanize-bonded synthetic elastomeric nose. Rail clamps are always fastened onto the rail ties with anchor bolts.

Our rail clamps can be well used in the acid rain area due to protection level over 9. Before shipping to customer every time, all clamps need to pass the 120h test of sulfur dioxide.

Name
Rail clamp Rail clamp
Rail clamp
Material
Q235-forging
ZG35-cast steel
QT500-7-cast iron
Chemical composition(%)
C:0.12-0.20, Mn:0.30-0.70, Si:≤0.3, P:≤0.045, S:≤0.045
C: ≤0.4, Mn:≤0.9, Si: ≤0.5, P:≤0.04, S:≤0.04
C:3.60-3.80, Mn:≤0.6, Si:2.50-2.90, P:≤0.08, S:≤0.025
