W14 Rail Fastening System/SKL14 Rail Fastening System

  • Product Item:093
  • Category:Rail Fastening System
  • Views:1954
  • W14 rail fastening system
  • SKL14 Rail fastening system
  • Rail fastener manufacturer
  • W14 Tension Clamp
  • Product Manual:W14 Rail Fastening System also named"SKL14 Rail Fastening System",it is widely used in European,Middle east,Kazakhstan and other place
BASIC INFO

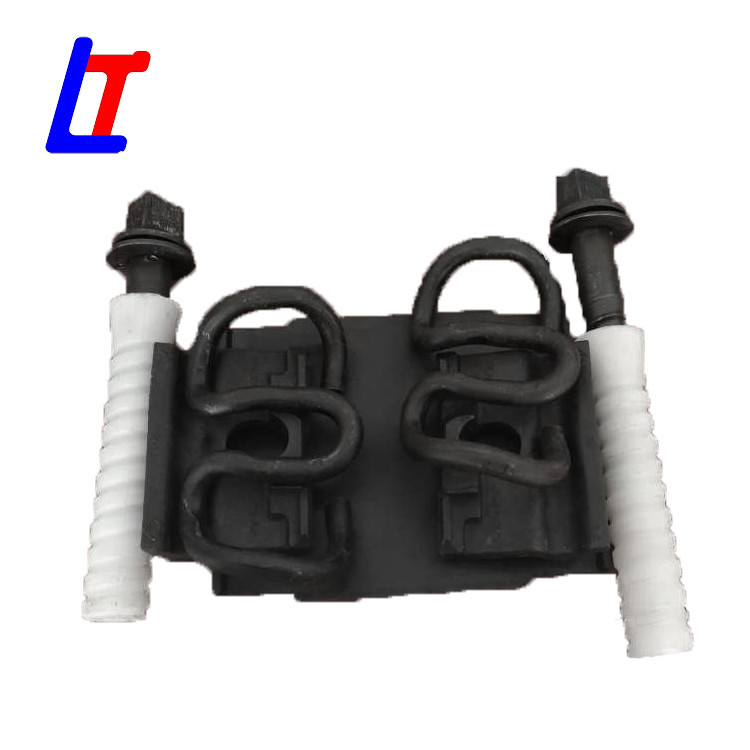

SKL14 RAil fastening system also name W14 rail fastening system.The consist of one rail fastening system including as below quantity and technical information as below:

Item Quantity Type Technical Surface Treatment Material
SKL14 rail clip(Tension clamp SKL14 ) 4 Dia 13mm Hardness: 42-48HRC
Fatigue test: When the clip spring deflection reaches 9.1mm and the swing deflection is 1.42mm, the fatigue life will be 5 millions cycles without breaking.
Standard: DIN17221, GB/T1222
Plain oiled, Static coating,Galvanized coating ,Dacrometor other paintings as client's required
60Si2Mn;38Si7
Angled Guide Plate Wfp-14K12 4 WFP-14K Standard:DIN and ISO Standard Black or according to client's required HDPE, Reinforced Nylon 66 (PA66)
Screw Spike Ss 35/Uls 7 4 M24×150mm
M24 ×160mm
M24×180mm
Standard: ISO898-1,UIC864-1,NF F500-50
Plain oiled, Black oxide, galvanized, Hot dip galvanized, Dacromet and Sherardized
Q235,35#,45#,40Cr
Washer
4 ULS7 Standard: EN10025, EN10139
Plain oiled, Black oxide, galvanized, Hot dip galvanized, Dacromet and Sherardized
45#
Plastic dowel 4 According to drawings Standard:DIN,EN,GB,ISO White or according to client's required
HDPE, Reinforced Nylon 66 (PA66)
Rail Pad Zw686a 2 According to drawings
Standard:Din,ISO,GB Black or according to client's required
EVA Or Rubber


The function of rail fastening system is to fix rails to railway sleeper or railroad ties,and we have the follow fastening system items:


Rail Fastener Item Type Country
E-clip Fastening System&E-clip Fastener Elastic Fastening System England,European,Indonesia,South Africa
Fast Clip Fastening System&Fast Clip Fastener Elastic Fastening System England,Europan,South Africa,Russia
F300 Fastening System Elastic Fastening System America,South America,Brazil
FC Fastening System Elastic Fastening System America,South America,Brazil
SFC Fastening System Elastic Fastening System America,South America,Brazil
Deenic Fastening System Elastic Fastening System America,Brail,South Africa
APC Fastening System Elastic Fastening System Russia
Fist Clip Fastening System Elastic Fastening System South America
Nabla Fastening System Nabla Fastening System France,Italy
102 Fastening System Japan Fastening System Japan
PR Fastening System PR Fastening System European
