P50 Rail Fastening System - 副本

  • Product Item:008
  • Category:Rail Fastening System
  • Views:973
  • P50 rail fastener
  • P50 rail fastening system
  • Type I rail fastening system
  • P50 rail fastener manufacturer
  • Product Manual:P50 rail fastening system,also called GB50 rail fastening system or Type I rail fastening system.It is widely used in China,Russia,Monglia,Middle East area,Vietnam,brzail ......
BASIC INFO

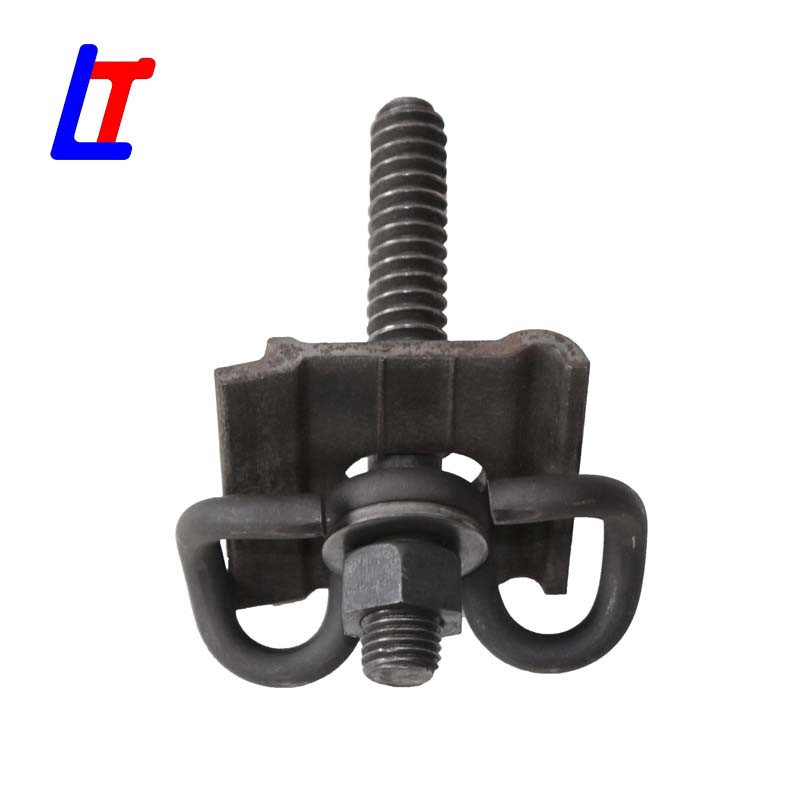

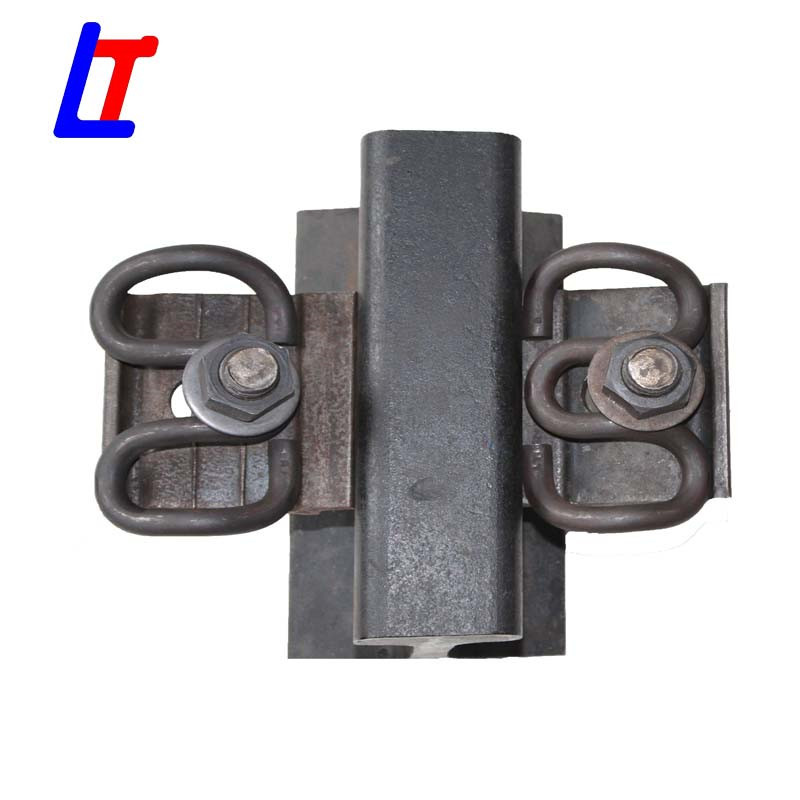

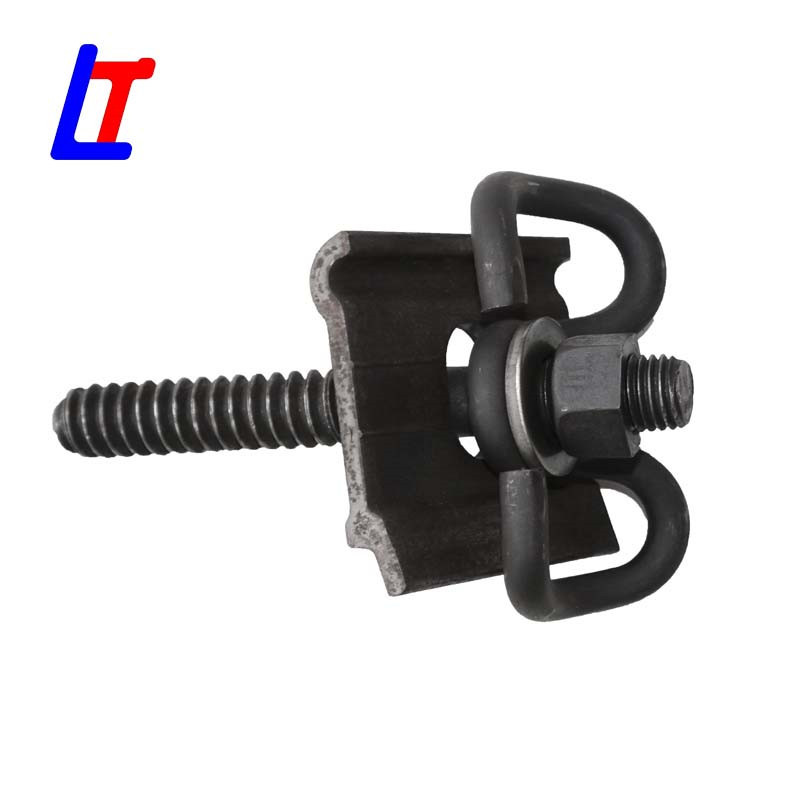

P50 Rail Fastening System


P50 Rail Fastener including the bellow rail parts:

Name Standard Material Weight(KG) Qty Surface treatment
Rail double head screw TB564 Q235 0.594 4 Galvanzied coating,hot dip galvanized coating,as client's required
Rail flat washer TB1495.4 Q235 0.112 4 galvanzied coating or black oil
Rail hex nut M24 GB41 Q235 0.069 4 galvanzied coat or black oil

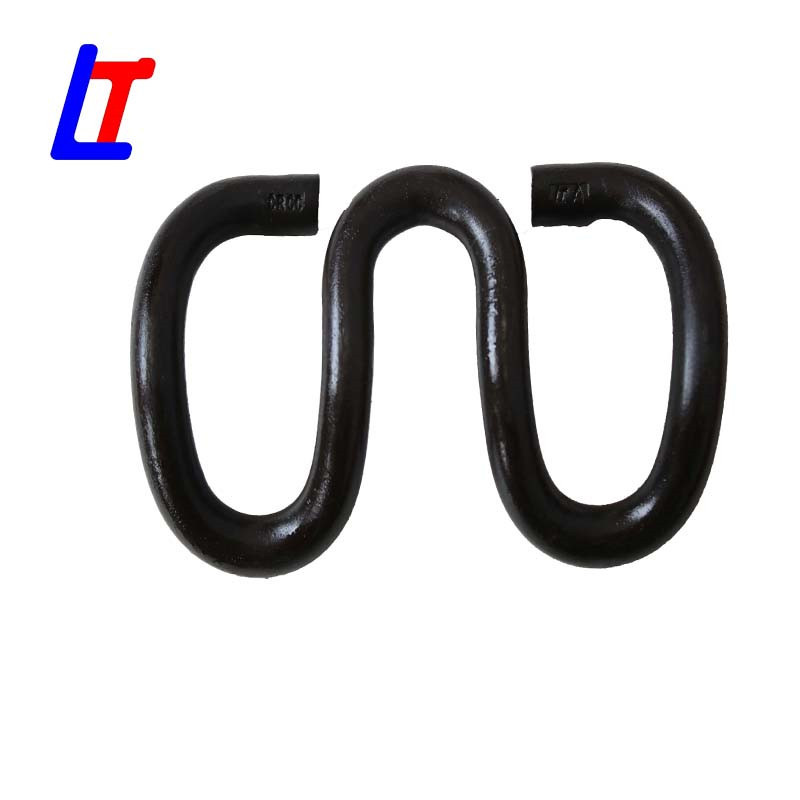

Rail clip A&Rail clip B TB1495.2 60Si2Mn 0.48 4 Black oil
Rail Insulator 14#&Rail Insulator 20# TB1495.3 Q235 0.695 4 black oil
Rail Insulator 10#&Rail Insulator 6# TB1495.3 Q235 0.695 4 Black oil
Rail guide plate
TB1495.5 Pa66+30%GF 0.046 4 Black or white
Rail Pad N/M EVA Or Rubber 0.032 2 Black


The function of rail fastening system is to fix rails to railway sleeper or railroad ties,we have the below Rail Fastener systems

Rail Fastener Item Type Country
E-clip Fastening System&E-clip Fastener Elastic Fastening System England,European,Indonesia,South Africa
Fast Clip Fastening System&Fast Clip Fastener Elastic Fastening System England,Europan,South Africa,Russia
F300 Fastening System Elastic Fastening System America,South America,Brazil
FC Fastening System Elastic Fastening System America,South America,Brazil
SFC Fastening System Elastic Fastening System America,South America,Brazil
Deenic Fastening System Elastic Fastening System America,Brail,South Africa
APC Fastening System Elastic Fastening System Russia
Fist Clip Fastening System Elastic Fastening System South America
Nabla Fastening System Nabla Fastening System France,Italy
102 Fastening System Japan Fastening System Japan
PR Fastening System PR Fastening System European
