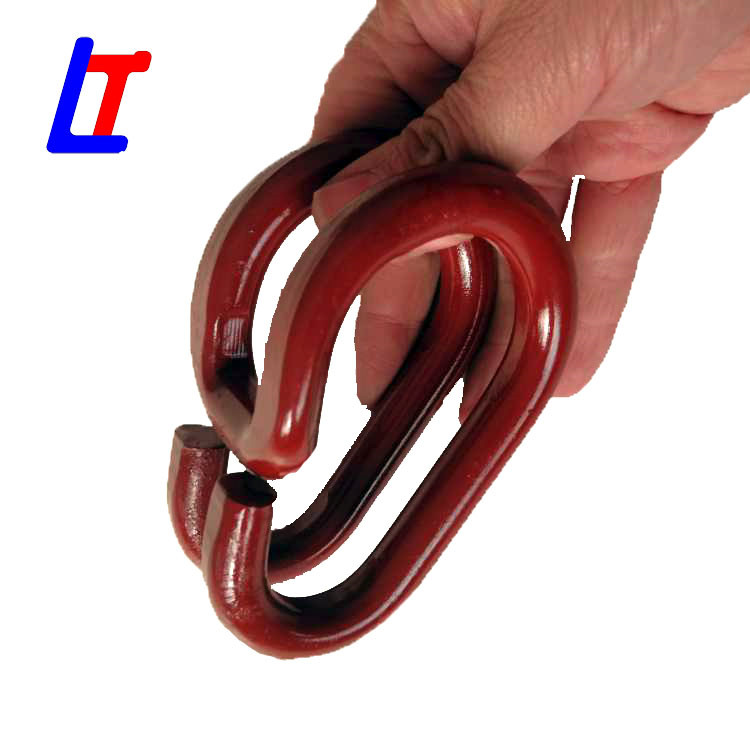

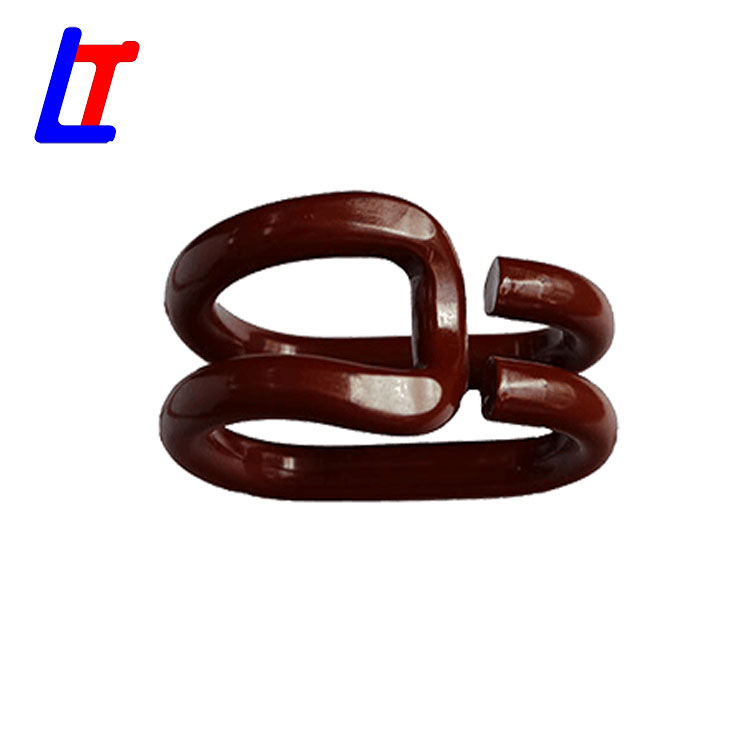

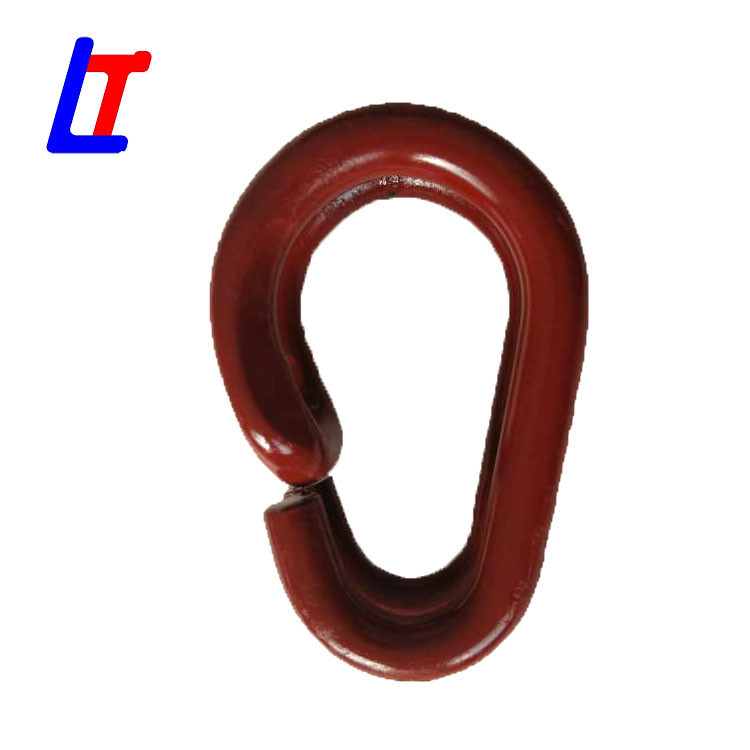

Deenic Elastic Rail Tension Clamp

  • Product Item:0186
  • Category:Rail Clip
  • Views:2779
  • 60Si2Mn
  • Usage:For rail fastener
  • CRCC Certification
  • ISO9001
  • Product Manual:our factory produce rail clips including,fast clip,e-clip,E2009,E1809 ,e2005,e2055,e2003,skl12,skl14,deenic clip,nabla clip,fist clip etc.
BASIC INFO

Rail elastic clip is used to fasten the rails to the underlying base plate together with the concrete sleeper. Usually rail clips are made of forged spring steel which is produced by hot forging process. Because of the uniform microstructure of forged clips, it is considered to be better than other metal forming process.
LT Factory offer an extensive range of rail clips with optimum quality, these rail clips are designed with high precision and made up of premium grade spring steel. LT Factory has been the largest and most competitive production base of rail clip in China over 42 years’ rail clip producing experience, and have qualification to tender nationally large and medium scaled rail projects. What’s more, our rail clip can be customized according to clients’ requirements.

Pandrol(E-clip,Fast clip)&Vosshol(SKL clips)&nabla clip are very famous in the world with high quality,Linzhou Public service railway Equipement Manufacturing can provide Oem Service,and the rail clips as below.

Item No Material Diameter Clip length Clip width Weight HRC Pressure Fatigue Test Countries
E1,E2,E3 60Si2Mn ø18


0.8 44-48
≥9.5KN
5000000 times without break
China
E1609 60Si2Mn
ø18
93±3

0.43 44-48
≥9.5KN
5000000 times without break
Southeast Asia
E1809 60Si2Mn
ø18
104±3

0.62 44-48
≥9.5KN
5000000 times without break
UK,European
E1817 60Si2Mn
ø18
104±3
37.5±3.0
0.62 44-48
≥9.5KN
5000000 times without break
E2001 60Si2Mn
ø18


0.6 44-48
≥9.5KN
5000000 times without break
africa
E2007 60Si2Mn
ø18
105±5
38max
0.62 44-48
≥9.5KN
5000000 times without break Korea
E2009 60Si2Mn
ø18
106±3
37.5
0.65 44-48
≥9.5KN
5000000 times without break
Brazil,America
E2055 60Si2Mn
ø20
106±3
56.6±3.0
0.8 44-48
≥9.5KN
5000000 times without break
Africa,EU,America,brazil
E2056 60Si2Mn
ø20
106±3
56.6±3.0
0.8
44-48
≥9.5KN
5000000 times without break
Africa,EU,America,brazil
E2063 60Si2Mn
ø20
110.5 53.5
0.8
44-48
≥9.5KN
5000000 times without break
Russia
PR309 60Si2Mn
ø19
130
0.91
44-48
≥9.5KN
5000000 times without break
Russia
PR401 60Si2Mn
ø20
127±3
38.1±3.0
0.97
44-48
≥9.5KN
5000000 times without break
Russia
PR601 60Si2Mn
ø19


0.8
44-48
≥9.5KN
5000000 times without break
Russia
PR85 60Si2Mn
ø19
88±3

0.8
44-48
≥9.5KN
5000000 times without break
Russia
PR415 60Si2Mn
ø20


0.8
44-48
≥9.5KN
5000000 times without break
Russial
PR601 60Si2Mn
ø20



44-48
≥9.5KN
5000000 times without break
Russia
DI 60Si2Mn ø18
100±3

44-48
≥9.5KN
5000000 times without break
China
E18 60Si2Mn
ø18
100±3


44-48
≥9.5KN
5000000 times without break
Africa,EU,America,brazil
E19 60Si2Mn
ø18
100±3


44-48
≥9.5KN
5000000 times without break
Africa,EU,America,brazil
E20 60Si2Mn
ø18
100±3


44-48
≥9.5KN
5000000 times without break
Africa,EU,America,brazil
SKL1 60Si2Mn
ø13
133±2.3

0.48 44-48
≥9.5KN
5000000 times without break
America,brazil
SKL3 60Si2Mn
ø13
120±2

0.48 44-48
≥9.5KN
5000000 times without break
America,brazil
SKL12 60Si2Mn
ø13


0.53 44-48
≥9.5KN
5000000 times without break
America,brazil
SKL14 60Si2Mn
ø13
155±2

0.53 44-48
≥9.5KN
5000000 times without break
America,brazil
Fast Clip-1508 60Si2Mn
ø15


0.58 44-48
≥9.5KN
5000000 times without break
Africa,EU,America,brazil
Fast clip-1501 60Si2Mn
ø15


0.58 44-48
≥9.5KN
5000000 times without break
Africa,EU,America,brazil
Fast Clip-16 60Si2Mn
ø16


0.6 44-48
≥9.5KN
5000000 times without break
Africa,EU,America,brazil
