Linzhou Public Service Railway Equipment Manfacturing Co.,Ltd

Rail Gauge Tie Rod

  • Product Item:0185
  • Category:Rail Gauge Rod
  • Views:936
  • gauge tie rod
  • IPQC
  • CRCC Certification
  • ISO9001
  • Product Manual:Rail fastener factory produce rail gauge tie rod

Track gauge tie rod is to connect two rails with one bar at the bottom of the rail to improve the lateral stability of the rail and the ability of maintaining track gauge.Some lines have track circuits which are separated by insulated parts in the track gauge tie rod.

Component Qty Material
Chunk 4 QT-450-10
Washer 4 Q235
Spring washer 4 Spring Steel
Gauge 1 Steel
Nut 4 Q235

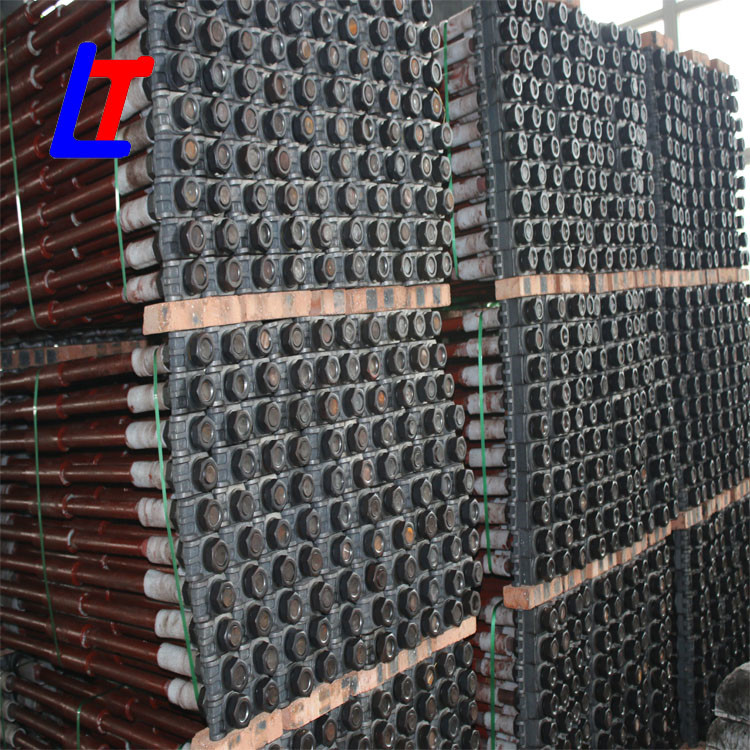

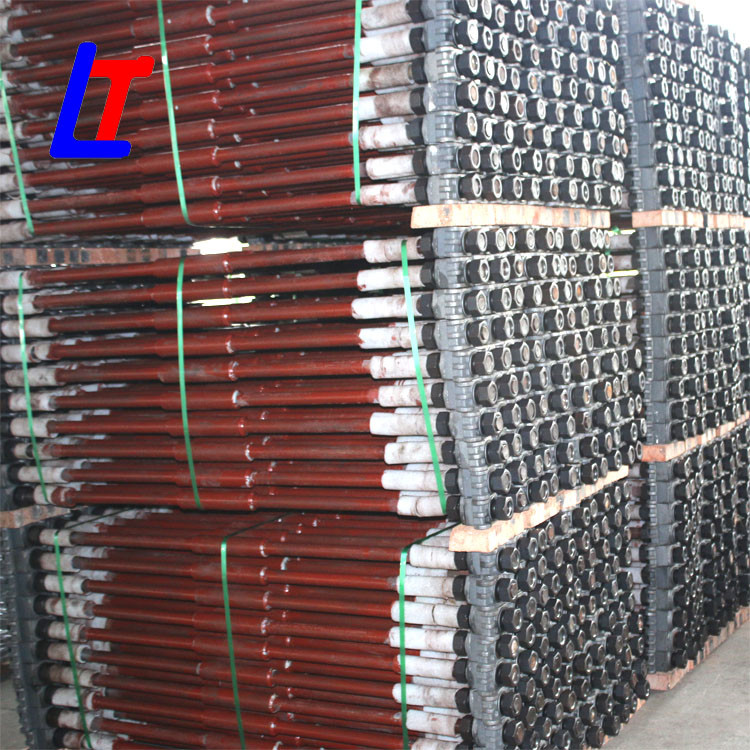

Our factory produce below rail gauge tie rod:

18 x 870 ,20 x 870,22 x 880,22 x 1050,24 x 1050,24 x 1250 ,28 x 1810,28 x 1850,32 x 1810,32 x 1850,36 x 1850
