Linzhou Public Service Railway Equipment Manfacturing Co.,Ltd

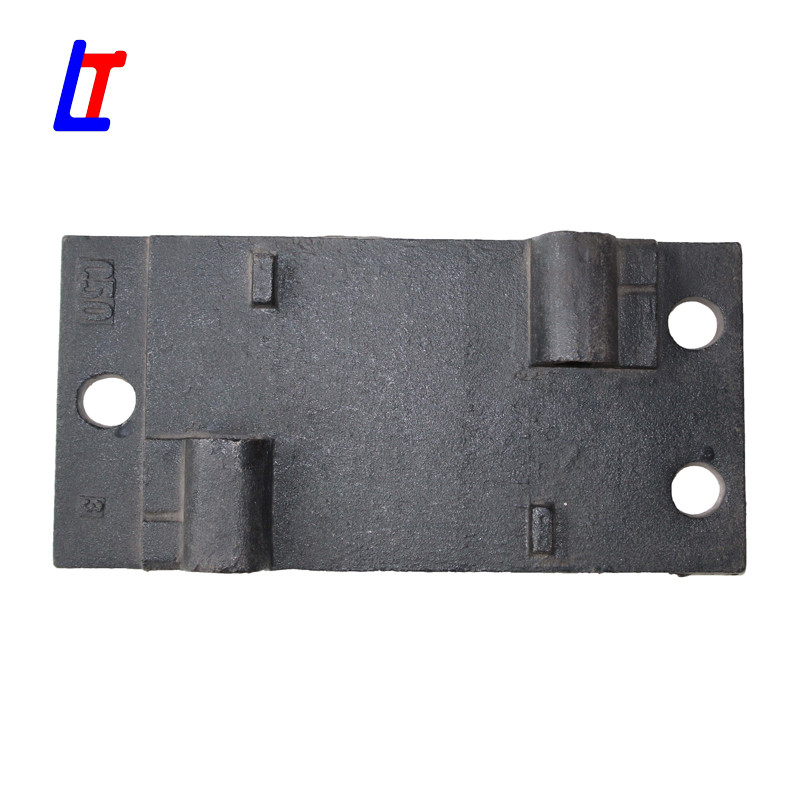

Railway tie plate

  • Product Item:050
  • Category:Rail Tie Plate
  • Views:1012
  • Material:QT450-10
  • IPQC
  • CRCC Certification
  • ISO9001:2018
  • Product Manual: We have wide ranges of production for rail tie plates, our lead time for mould and mass production are very effective We have rich experience of supplying rail tie plates for worldwide mark
BASIC INFO


Material:QT400-15,QT450-10,QT500-7,ZG25,ZG35,ZG45

Finish:Plain,Black,Zinc,HDG,Dacromet

MOQ:1,000 pieces

Supply Capacity:3,000 Tons per Month

Delivery:25 Days after Order

Base tie plate, also called sole plate or baseplate, is a piece of plate made by steel used between the rails and sleeper ties in order to enlarge the bearing touching area and maintain the rail in right gauge all the time. For wooden ties, a baseplate is always fixed with rail spikes or track bolts in holes on the plate.

At our production base for the tie plates, various types are available following standards of AREMA, UIC, BS and others, with either single shoulder plates or double shoulder plates according to customers’ requirements.

  • Size: 10-15inch long, for rails of 90RA-A, 100RE, 115-119RE, 132-136RE
  • Material: Low carbon steel/high carbon steel, equivalent of customers’ required materials.
  • Standard: AREMA
  • Processing way: casting, forging or rolling
  • Size: for UIC60, UIC54, S48 rails
  • Material: Low carbon steel, high carbon steel, casting iron.
  • Standard: UIC864-6
  • Processing way: casting, forging or rolling
  • Size: for 50kg/30kg/37kg rails
  • Material: QT450-10 or other low carbon steel
  • Standard: GB, JIS E1110
  • Processing way: casting, forging or rolling

Linzhou Public Service Railway Equipment Manufacturing Co.,Ltd Has automatic machinery production casting line, new detection equipment and instruments  as below:

Production Equipment Type Unit QTY Production Capacity Material
Core shooter
Z8612B Set 4 40Ton QT450-10;QT500-7
Automatic shell core machine
Z9508 Set
1 40Ton
QT450-10;QT500-7
Megatron Pressure Implentation molding machine Z145W Set
12 40Ton
QT450-10,QT500-7
Electric stove 1 Ton Set
2 40Ton
QT450-10,QT500-7
Spheroidizing double wire feeder WX-60T Set
2 40Ton
QT450-10,QT500-7
Crawler shot blasting machine 600 Set
2 40Ton
QT450-10,QT500-7
Medium Frequency Melting Equipment For Vein Steel Sheel Yoke 2T Set
4 40Ton
QT450-10,QT500-7
Continus Emission Monitoring System CEMS Set
2 60Ton
QT450-10,QT500-7
Vertical parting box-less injection moulding machine ZZ416BC Set
1 60Ton
QT450-10,QT500-7


Inspect machine

Type

Unit

Qty

Test Content

Usage

Magnetic Particle testing machine

CTW-2000

Set

1

Anti-corrosion parts

all kinds of fasteners

Sulfur dioxide corrosion testing machine

F-S02-250

Set

1

Anti-corrosion parts

all kinds of fasteners

Smoke Corrosion Testing Machine

SK-110C

Set

1

Anti-corrosion parts

all kinds of fasteners

Box Sand Blasting Machine

Set

1

Anti-corrosion parts

all kinds of fasteners

Micro computer controlled electronic universal material testing

WDW-300M

Set

1

Anti-corrosion parts

all kinds of fasteners


Invested 2 billion on this iron casting production line,Strictly in quality.Rail Tie Plate&Base plate,Rail clamp,rail baffle plate,rail shoulder,rail brace we can produce with this machine.If you need,contact us lina@lt-railfastener.com
